3VA2110-5HL42-0AA0

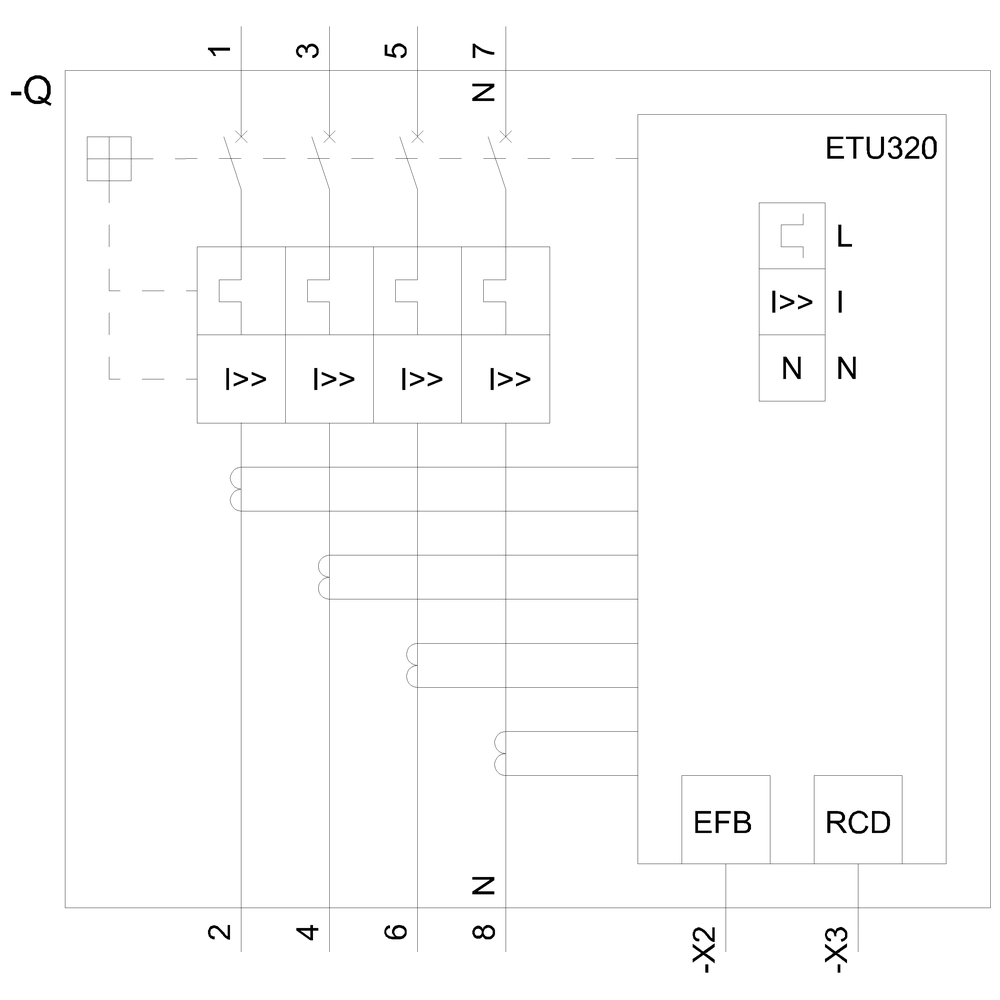

circuit breaker 3VA2 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 4-pole, line protection ETU320, LI, In=100 A overload protection Ir=40 A…100 A short-circuit protection Ii=1.5…12 x In neutral conductor protection adjustable (OFF, 50%, 100%) nut keeper kit
- Stock status:
- Call for availability
- Manufacturer:
- Siemens
- Product code:
- 3VA2110-5HL42-0AA0
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
Related products
| Product | |
| Article Number (Market Facing Number) | 3VA2110-5HL42-0AA0 |
| Product Description | |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| Product Lifecycle (PLM) | Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 53J |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | LOA—– |
| General technical data | |
| insulation voltage / rated value | 800 V |
| operating voltage / at DC / rated value | |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 10 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3.33 W |
| mechanical service life (operating cycles) / typical | 25 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 14 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 9 800 |
| ground-fault monitoring version | Without |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | not available |
| Net Weight | 2.75 kg |
Product Description
Product Overview
Product Name: 3VA2 Circuit Breaker
Product Code: 3VA2110-5HL42-0AA0
Brand: Siemens SENTRON
Product Family: 3VA Molded Case Circuit Breakers up to 1600 A (IEC)
Design: Line protection
Device Type: MCCB with ETU320 overcurrent release
Protection Function: LI (Overload & Short-Circuit)
Number of Poles: 4P
Life Cycle Status: Active Product
EAN: 4042948833384
UPC: 804766446962
Commodity Code: 85362090
Technical Specifications
Frame Size: 160 A
Rated Current (In): 100 A
Adjustable Overload Protection (Ir): 40 A … 100 A
Adjustable Short-Circuit Protection (Ii): 1.5 … 12 × In
Breaking Capacity (Icu): 55 kA @ 415 V AC (Class M)
Rated Operational Voltage (Ue): 690 V AC
Rated Insulation Voltage (Ui): 800 V
Maximum Power Loss: 10 W
Power Loss per Pole (hot state): 3.33 W
Mechanical Durability: 25,000 operations
Electrical Endurance (AC-1 380/415 V): 14,000 operations
Electrical Endurance (AC-1 690 V): 9,800 operations
Mounting Type: Fixed mounting
Neutral Conductor Protection: Adjustable (OFF, 50%, 100%)
Ground-Fault Monitoring: Without
Communication Function: No
Measurement Function: No
Net Weight: 2.75 kg
Accessories: Nut keeper kit included
Performance & Features
55 kA breaking capacity (Class M) suitable for medium-fault-level networks.
ETU320 overcurrent release ensures accurate overload and short-circuit protection.
4-pole configuration with adjustable neutral conductor protection for flexible system design.
Wide adjustment range of Ir and Ii for precise coordination.
High mechanical and electrical endurance ensures long-term reliability.
IEC-compliant for global low-voltage applications.
Applications
Industrial and commercial distribution boards
Feeder and sub-distribution circuits
Low-voltage systems requiring 55 kA breaking capacity
Protection of machinery, infrastructure loads, and distribution feeders
Summary
In summary, the Siemens 3VA2110-5HL42-0AA0 is a 160 A, 4-pole MCCB featuring ETU320 protection, 55 kA breaking capacity (Class M), and adjustable neutral conductor protection for reliable line protection in medium-fault-level electrical networks.
Frequently Asked Questions
What is the full form of MCCB in Siemens?
The full form of MCCB is Molded Case Circuit Breaker. A Siemens MCCB is designed to handle high electrical currents, often up to 1000A, making it highly reliable for industrial and commercial applications. These breakers provide advanced protection against overloads and short circuits, ensuring the safety of large electrical systems.
What is the difference between a Molded Case Circuit Breaker (MCB) and an MCCB?
The main difference between an MCB (Miniature Circuit Breaker) and an MCCB (Molded Case Circuit Breaker) lies in their capacity and applications.
✅MCBs are generally used for low-power applications, with a short-circuit breaking capacity of up to 10–15 kA. They are best suited for residential and light commercial systems.
✅ MCCBs, on the other hand, are designed for medium to high-power applications, with a breaking capacity ranging from 15 kA up to 100 kA and current ratings up to 1000A. This makes them ideal for industrial environments where large electrical loads need reliable protection.
Which company circuit breaker is best?
✅ In 2025, the leading circuit breaker brands include Siemens, Schneider Electric, ABB, Eaton, and Legrand. Among them, Siemens MCCBs—especially the Sentron 3VA series—stand out for safety, durability, and advanced circuit protection in industrial and commercial applications.
What breakers work in a Siemens box?
Siemens QT, QP, QAF, and QPF breakers fit Siemens panels. However, not all breakers are interchangeable—e.g., a QT breaker cannot replace a QP breaker. Always check compatibility before replacing.
