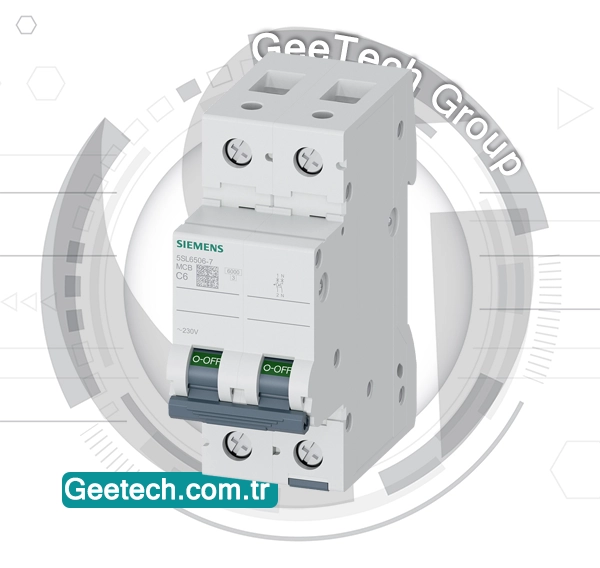

5SL6506-7
Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 6A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6506-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
Related products
| Product | |
| Article Number (Market Facing Number) | 5SL6506-7 |
| Product Description | Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 6A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869389288 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Turkiye | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | 11824d9c-38a8-413b-af8b-f75e3b775557 | |
Product Description
5SL6506-7
The 5SL6506-7 from Siemens is a high-quality miniature circuit breaker (MCB) designed to protect single-phase circuits with neutral from overload and short-circuit faults. Operating at 230 V AC with a breaking capacity of 6 kA, this 1+N-pole MCB features a Type C tripping characteristic and a rated current of 6 A, making it ideal for residential and commercial applications where both phase and neutral need protection.
Key Features and Specification
- Product Code: 5SL6506-7
- Rated Voltage: 230 V AC
- Breaking Capacity: 6 kA
- Number of Poles: 1+N
- Tripping Characteristic: Type C
- Rated Current: 6 A
- EAN: 4001869389288
- Commodity Code: 85362010
- Catalog ID: LV10.1
- Product Group: 3803
- Lifecycle Status: Active Product (PM300)
Applications
- Protection of single-phase circuits with neutral
- Residential lighting and socket circuits
- Small appliances and control panels
- Commercial and light industrial installations
Summary:
The Siemens 5SL6506-7 is a compact and reliable 1+N-pole miniature circuit breaker rated at 6 A. With its Type C tripping curve and 6 kA short-circuit capacity, it ensures safe and effective circuit protection for low-current single-phase applications.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
