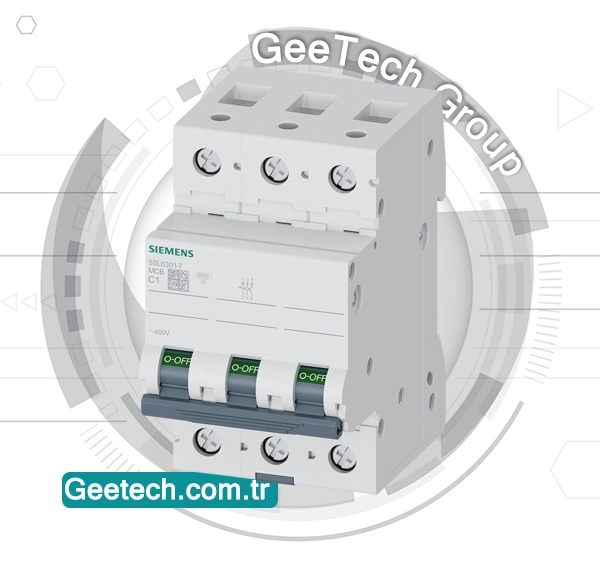

5SL6301-7
Miniature circuit breaker 400 V 6kA, 3-pole, C, 1 A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6301-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
| Product | |
| Article Number (Market Facing Number) | 5SL6301-7 |
| Product Description | Miniature circuit breaker 400 V 6kA, 3-pole, C, 1 A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 11B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869388670 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Romania | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | 9a06fab4-c4c2-4ea4-95ed-d8e2bae78ef5 | |
Product Description
5SL6301-7
The 5SL6301-7 from Siemens is a compact and precise miniature circuit breaker (MCB) designed for reliable protection of electrical installations against overloads and short circuits. This 3-pole device operates at a rated voltage of 400 V AC with a breaking capacity of 6 kA. It features a Type C tripping curve and is rated for a current of 1 A, making it particularly suitable for low-current applications requiring multi-phase protection.
Key Features and Specification
- Product Code: 5SL6301-7
- Rated Voltage: 400 V AC
- Breaking Capacity: 6 kA
- Number of Poles: 3
- Tripping Characteristic: Type C
- Rated Current: 1 A
- EAN: 4001869388670
- Commodity Code: 85362010
- Product Group: 3803
- Lifecycle Status: Active Product (PM300)
Applications
- Low-power three-phase circuit protection
- Residential and commercial control panels
- Precision electronic systems requiring sensitive circuit protection
- Specialized industrial automation components with minimal current requirements
Summary:
The 5SL6301-7 is a 1 A, 3-pole MCB from Siemens that combines precision and reliability. With a 6 kA breaking capacity and Type C characteristic, it is ideal for protecting low-current circuits in multi-phase electrical systems.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
