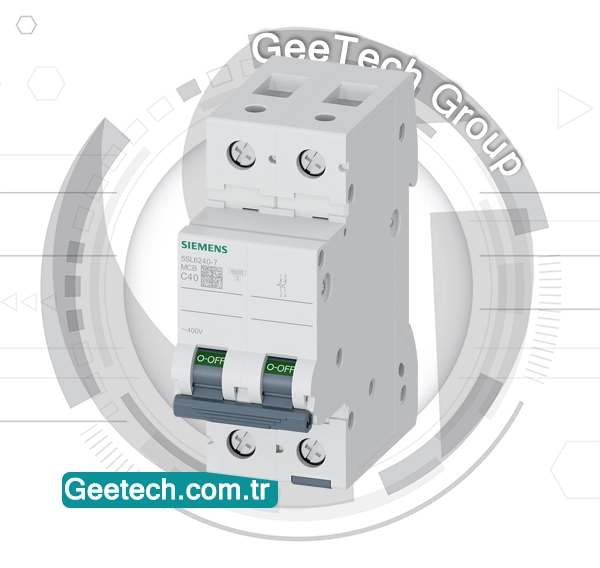

5SL6240-7
Miniature circuit breaker 400 V 6kA, 2-pole, C, 40 A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6240-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
Related products
| Product | |
| Article Number (Market Facing Number) | 5SL6240-7 |
| Product Description | Miniature circuit breaker 400 V 6kA, 2-pole, C, 40 A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869388526 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Romania | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | Not available | |
Product Description
5SL6240-7
The 5SL6240-7 from Siemens is a high-performance miniature circuit breaker (MCB) engineered to provide dependable protection against overloads and short circuits in electrical installations. It is rated for 400 V AC with a breaking capacity of 6 kA and features a 2-pole configuration along with a Type C tripping characteristic. With a rated current of 40 A, this device is well-suited for circuits with higher current demands in both residential and commercial environments.
Key Features and Specification
- Product Code: 5SL6240-7
- Rated Voltage: 400 V AC
- Breaking Capacity: 6 kA
- Number of Poles: 2
- Tripping Characteristic: Type C
- Rated Current: 40 A
- EAN: 4001869388526
- Commodity Code: 85362010
- Product Group: 3803
- Lifecycle Status: Active Product (PM300)
Applications
- Residential power distribution boards
- Commercial and office building installations
- Industrial control panels with moderate to high load equipment
- HVAC systems, lighting circuits, and motor protection
Summary:
The 5SL6240-7 is a robust Siemens 2-pole, 40 A MCB with a 400 V AC rating and 6 kA breaking capacity, designed for reliable circuit protection. Its Type C curve makes it ideal for handling moderate inrush currents, providing efficient performance and enhanced safety in demanding electrical environments.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
