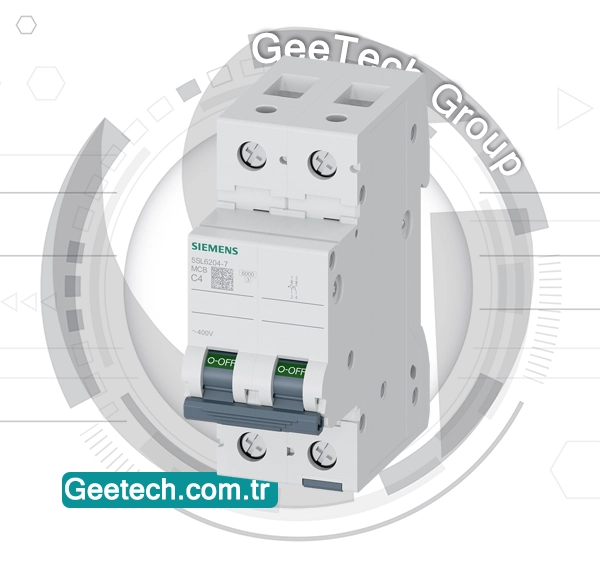

5SL6204-7
Miniature circuit breaker 400 V 6kA, 2-pole, C, 4A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6204-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
| Product | |
| Article Number (Market Facing Number) | 5SL6204-7 |
| Product Description | Miniature circuit breaker 400 V 6kA, 2-pole, C, 4A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869388434 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Turkiye | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | a4714c5c-1cd5-4b78-97cb-816f65f5df9b | |
Product Description
5SL6204-7
The 5SL6204-7 from Siemens is a robust miniature circuit breaker (MCB) designed for effective protection of electrical systems against overload and short-circuit conditions. This model operates at a rated voltage of 400 V, features a breaking capacity of 6 kA, and is equipped with 2 poles (2P). It comes with a C-curve tripping characteristic and supports a rated current of 4 A.
Key Features and Specification
- Rated Voltage: 400 V
- Breaking Capacity: 6 kA
- Number of Poles: 2
- Tripping Curve: Type C
- Rated Current: 4 A
- Product Family: Basic Devices
- Siemens Article Number: 5SL6204-7
- EAN: 4001869388434
- Commodity Code: 85362010
- Product Lifecycle: PM300 – Active Product
Applications
Suitable for residential, commercial, and light industrial applications, this MCB ensures safe disconnection and protects devices and wiring from damage due to electrical faults.
Summary:
The 5SL6204-7 is a Siemens 2-pole, 4 A miniature circuit breaker with a 400 V AC rating, 6 kA breaking capacity, and Type C trip curve. It offers dependable and safe circuit protection, ensuring reliable performance and enhanced safety with dual-pole operation under fault conditions.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
