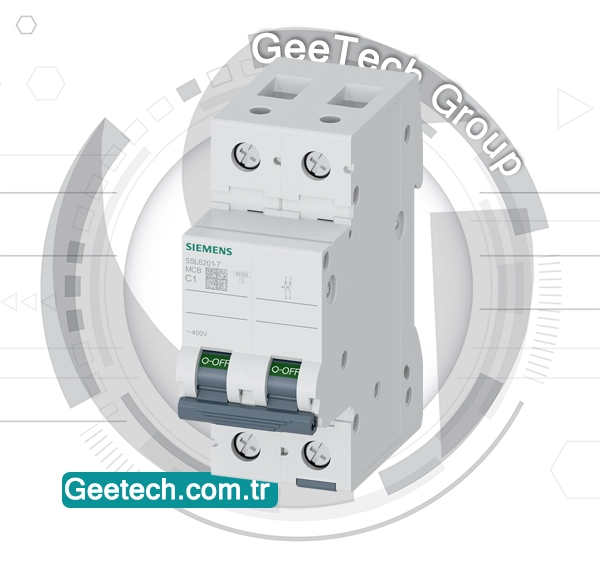

5SL6201-7
Miniature circuit breaker 400 V 6kA, 2-pole, C, 1 A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6201-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
| Product | |
| Article Number (Market Facing Number) | 5SL6201-7 |
| Product Description | Miniature circuit breaker 400 V 6kA, 2-pole, C, 1 A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869388397 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Romania | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | 5feea37c-e680-49a8-a8aa-7ac2042536a3 | |
Product Description
5SL6201-7
The Siemens 5SL6201-7 is a 2-pole miniature circuit breaker (MCB) rated for 400 V AC applications. It features a Type C tripping characteristic and supports a rated current of 1 A, with a short-circuit breaking capacity of 6 kA. This device ensures reliable protection of electrical circuits against short circuits and overloads in residential, commercial, and industrial environments.
Key Features and Specification
- Rated Voltage: 400 V AC
- Rated Current: 1 A
- Poles: 2
- Tripping Characteristic: Type C
- Breaking Capacity: 6 kA (IEC/EN 60898-1)
- Mounting: DIN rail
- Product Family: Basic Devices
- Lifecycle Status: PM300 – Active Product
- EAN: 4001869388397
- Commodity Code: 85362010
- Catalog ID: LV10.1
- Product Group: 3803
- Group Code: P310
Applications
This MCB is suitable for:
- Low-current control circuits
- Lighting and signaling protection
- Residential and commercial electrical panels
- Load protection for sensitive devices where low current trips are required
- Dual-pole circuit isolation for improved safety
Summary:
The 5SL6201-7 from Siemens is a 2-pole, 1 A miniature circuit breaker designed for 400 V AC systems, offering Type C tripping and 6 kA breaking capacity. It provides dependable circuit protection in environments where low current limits and dual-pole isolation are critical for safety and performance.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
