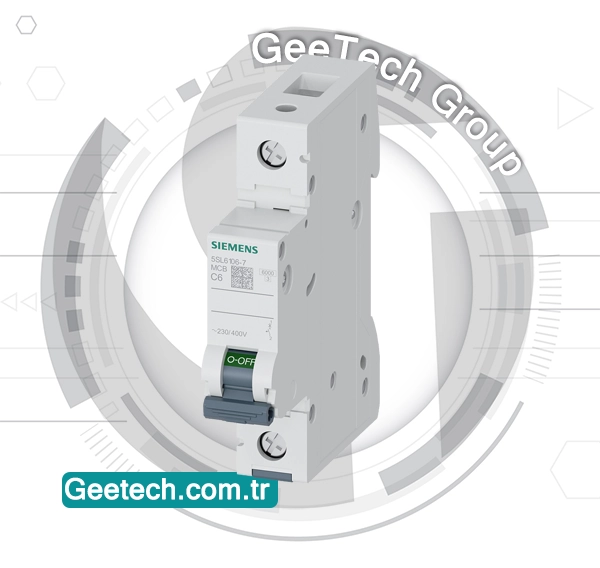

5SL6106-7
Miniature circuit breaker 230/400 V 6kA, 1-pole, C, 6A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL6106-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
| Product | |
| Article Number (Market Facing Number) | 5SL6106-7 |
| Product Description | Miniature circuit breaker 230/400 V 6kA, 1-pole, C, 6A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 11B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-O—– |
| Additional Product Information | ||
| EAN | 4001869388168 | |
| UPC | 040892932751 | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3803 | |
| Group Code | P310 | |
| Country of origin | Turkey | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | 57d8e116-8c8c-4be4-8ad8-8c63488c5e2f | |
Product Description
5SL6106-7
The Siemens 5SL6106-7 is a single-pole miniature circuit breaker (MCB) engineered to deliver dependable protection for electrical circuits against overcurrent and short circuits. It features a C-type tripping characteristic, making it suitable for applications with moderate inrush currents such as small motors and lighting circuits. With a rated current of 6 A, it operates at 230/400 V AC and has a breaking capacity of 6 kA.
Key Features and Specification
- Product Code: 5SL6106-7
- Voltage Rating: 230/400 V AC
- Rated Current: 6 A
- Number of Poles: 1 (Single-pole)
- Tripping Characteristic: Type C (ideal for circuits with moderate inrush currents)
- Breaking Capacity: 6 kA (according to IEC 60898-1)
- Mounting Type: DIN rail
- Standard Compliance: IEC/EN 60898
- Protects circuits from overload and short-circuits
- Type C curve: suitable for residential, commercial, and light industrial applications
- High switching capacity of 6 kA
- Compact design for space-saving installation
- Reliable operation and long service life
- Siemens quality – safe, certified, and globally trusted
Product Information
- Number: 5SL6106-7
- EAN: 4001869388168
- UPC: 040892932751
- Commodity Code: 85362010
- Catalog ID: LV10.1
- Product Family: Basic Devices
- Product Group: 3803
- Group Code: P310
- Product Lifecycle Status: PM300 (Active Product)
Applications
- Small motor protection
- Lighting systems
- Socket outlets
- Residential and commercial electrical panels
Summary
The Siemens 5SL6106-7 MCB is a compact and reliable circuit protection device tailored for circuits with moderate inrush currents. With a C-type characteristic, 6 A rating, and Siemens’ trusted quality, it’s a solid choice for ensuring electrical safety in residential and commercial setups.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
