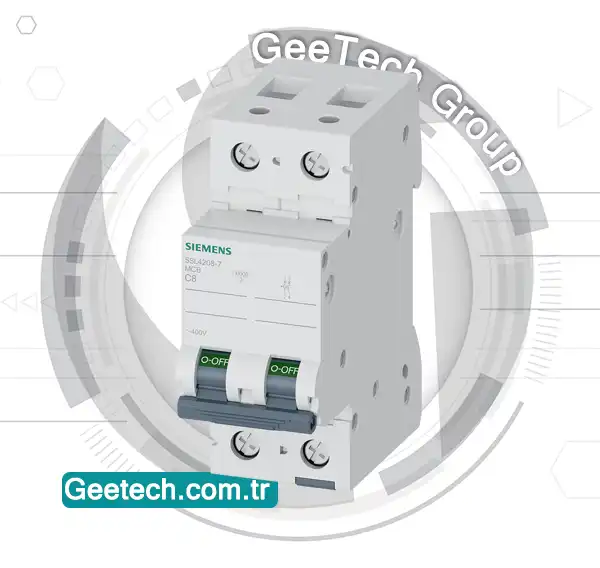

5SL4208-7
Miniature circuit breaker 400 V 10kA, 2-pole, C, 8A
- Stock status:
- In stock
- Manufacturer:
- Siemens
- Product code:
- 5SL4208-7
Main documents
- Product datasheet
- Instruction sheet
- Catalogue
Related products
| Product | |
| Article Number (Market Facing Number) | 5SL4208-7 |
| Product Description | Miniature circuit breaker 400 V 10kA, 2-pole, C, 8A |
| Product family | Basic Devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | L-A—– |
| Additional Product Information | ||
| EAN | 4001869440323 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3805 | |
| Group Code | P310 | |
| Country of origin | Romania | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2013 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates | ||
| SCIP number | Not available | |
Product Description
5SL4208-7
The Siemens 5SL4208-7 is a reliable and high-performance 2-pole Miniature Circuit Breaker designed to safeguard electrical systems against overloads and short circuits. Operating at 400 V AC, it features a Type C tripping characteristic and a rated current of 8 A, making it suitable for a variety of applications involving inductive loads.
Key Features and Specification
- Rated Operating Voltage: 400 V AC
- Rated Current: 8 A
- Tripping Curve: Type C
- Number of Poles: 2
- Breaking Capacity: 10 kA (according to IEC 60898-1)
- Effective protection for equipment with moderate inrush currents
- Compact 2-pole design for easy installation on DIN rails
- C characteristic curve ideal for mixed loads and small motor circuits
- High short-circuit breaking capacity of 10 kA ensures operational safety
- Part of the Siemens Basic Devices family
Product Information
- Number: 5SL4208-7
- EAN: 4001869440323
- Commodity Code: 85362010
- Catalog ID: LV10.1
- Product Group: 3805
- Group Code: P310
- Lifecycle Status: PM300 – Active Product
Applications
- Residential and commercial electrical installations
- Lighting and socket circuits
- Control panels with inductive components such as motors or transformers
Summary:
The 5SL4208-7 Miniature Circuit Breaker from Siemens combines trusted performance and safety in a compact and easy-to-install form factor — ideal for protecting modern electrical systems.
Frequently Asked Questions
What is the rule for installing an SPD?
✅ SPD (Surge Protection Device) connections should be as short as possible to minimize the voltage protection level (Up). The total length of connections to the network and earth should not exceed 50 cm to ensure effective surge protection.
How to Set Up a Surge Protector?
1.Turn off power at the circuit breaker.
2. Remove the old outlet.
3. Connect wires to the new surge-protected outlet per the manufacturer’s instructions.
4. Secure the outlet in the box and replace the cover plate.
5. Restore power and test the outlet.
What is the use of RCCB in Siemens?
✅ Siemens Residual Current Circuit Breakers (RCCBs) protect against electric shock by detecting leakage currents. If the leakage exceeds a set limit, the RCCB immediately disconnects the circuit, ensuring safety from direct or indirect contact with live components.
Where to Install RCCB?
✅ RCCBs should be installed in the distribution board (DB box) or circuit breaker panel to protect against current leakages caused by faulty wiring, ageing insulation, or defective appliances.
